Excellent Cat6 Performance

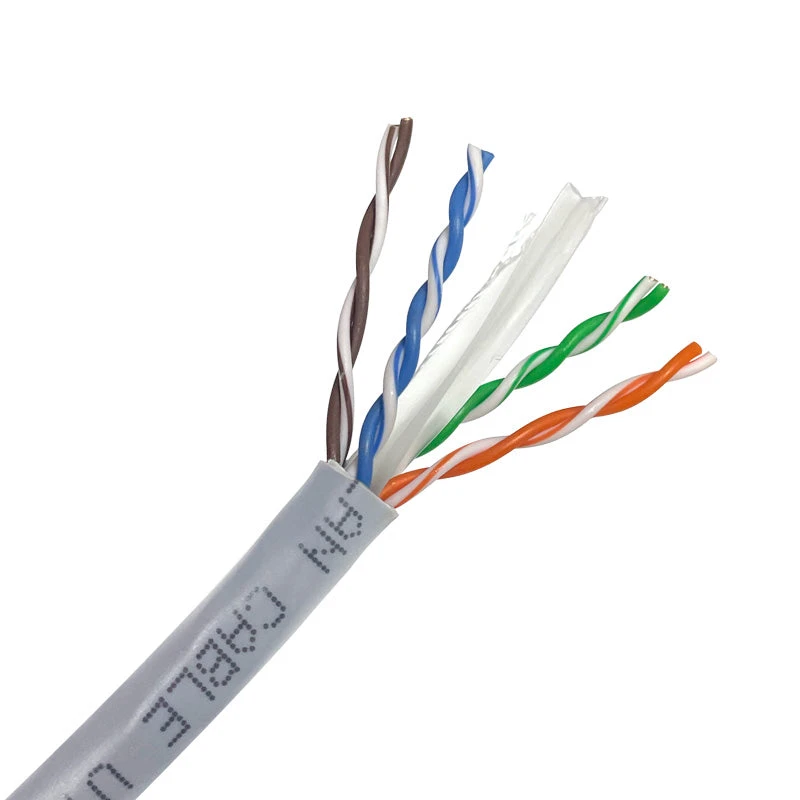

-4 pair easily identified color-striped pairs;
-Excellent attenuation and crosstalk characteristics;
-Adopt high-quality 23 AWG standard 1.02mm single strand.
Safe & Reliable
CMR jacket is UL-listed and is flame retardant for use between floors, within walls, and in non-ventilated spaces. It helps us prevent the spread of fire to floors in vertical installations.
Wide Application
-ANSI/TIA-568-C.2 and ISO 11801;
-EN50173 and IEC61156-5;
-IEEE 802.3af and IEEE 802.3at.
OEM/ODM Customization
-Support customized Ethernet cables with various specifications. Please send us an inquiry or email us.
Product Specification | |||

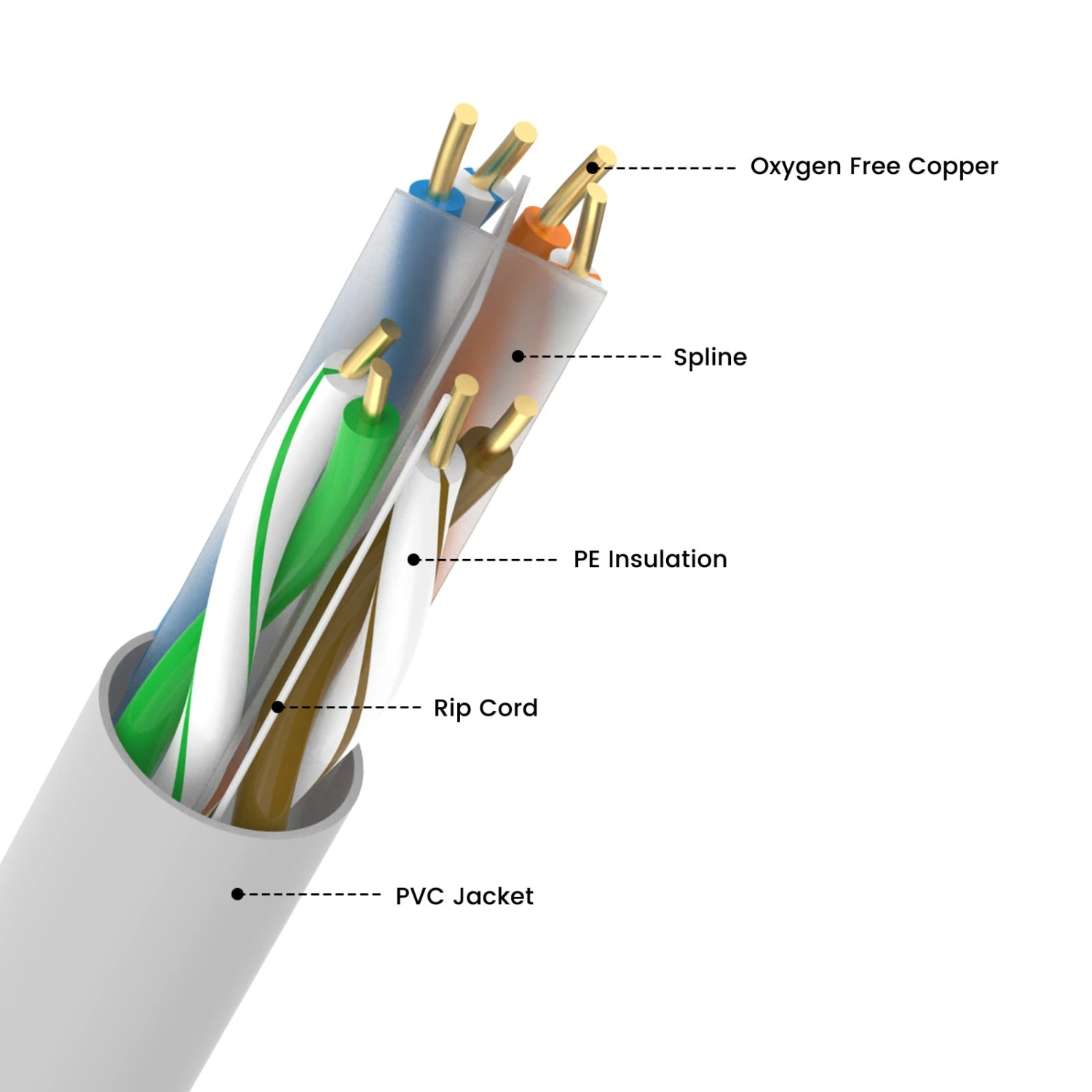

| Type | U/UTP Cat6 Cable | Wire Gauge | 23AWG |
| Conductor Material | Copper | Insulation Material | HDPE |

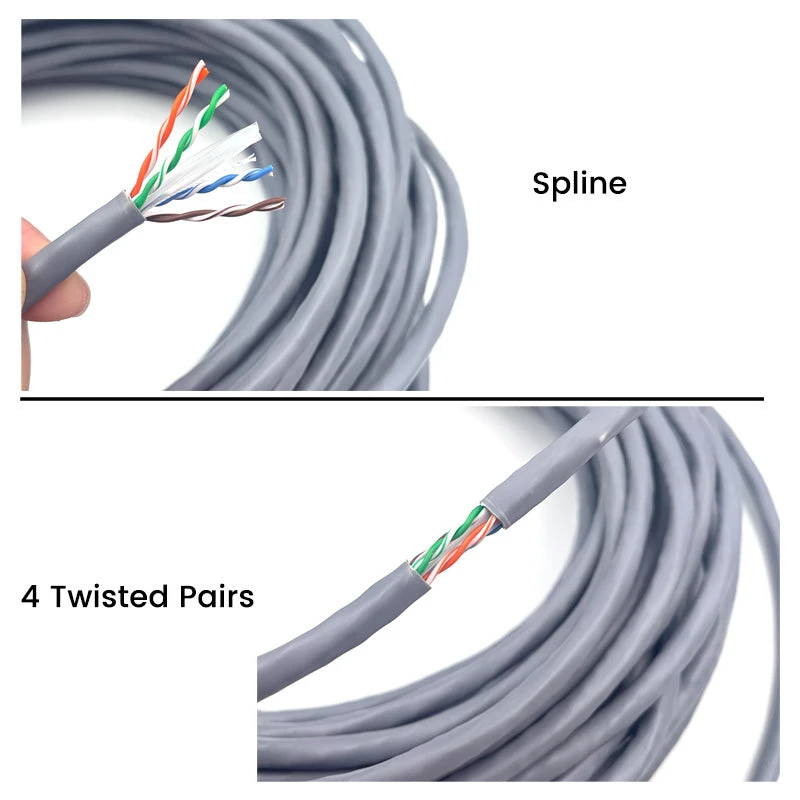

| Insulation Diameter | 1.02mm | Number of Conductors | 8 Twisted in 4 Pairs |
| Drain Wire | None | Shield | None |

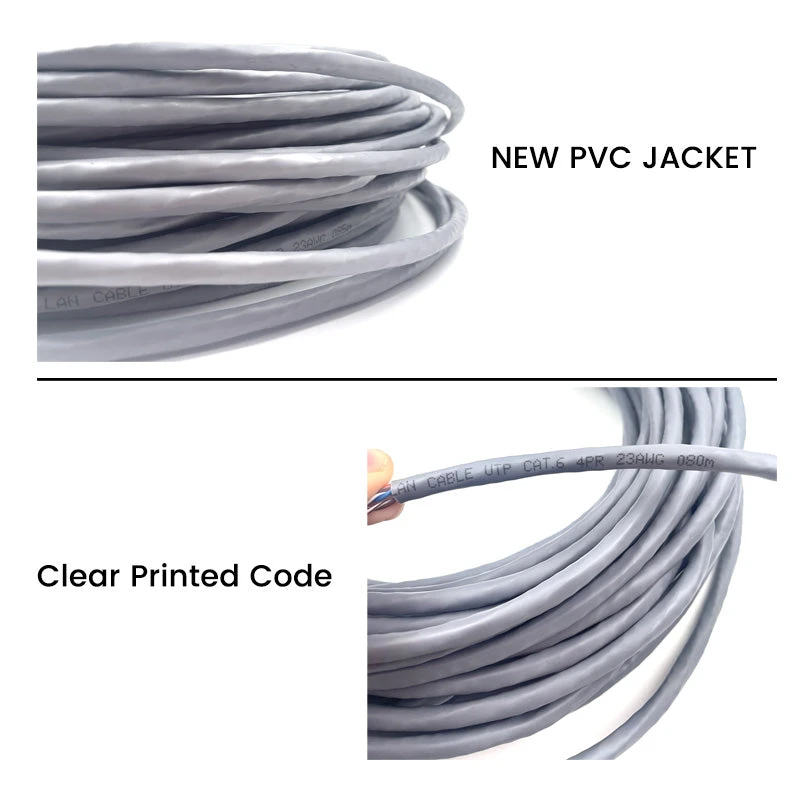

| Outer Jacket Material | PVC | Outer Jacket Diameter | 6.40mm±0.20mm |
| Cable Length | 500ft/1000ft | MOQ | 300 Boxes |
Electrical Characteristics | |||
| Impedance | 1-250MHz 100±15(Ohms) | Rated Temperature | 75C° |
| DC Resistance Unbalance(%) | Max 2.5 | DC Resistance 20C° | 8.4(Ohms/100m) |
| Insulation Resistance | >5000MΩ *Km | Dielectric strength | DC 2500V 2S |
